CP-C.1.24/10.0 1SVR360663R1001

  • CP-C.1.24/10.0 1SVR360663R1001

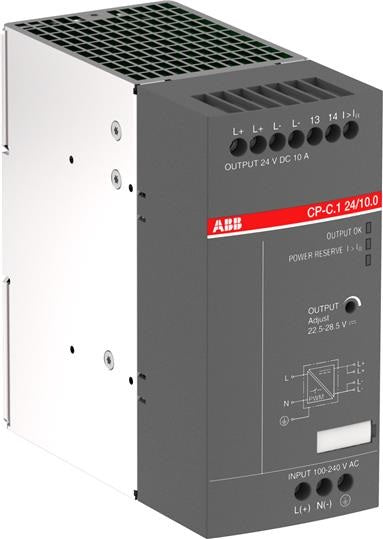

ABB power supply. In: 100-240 VAC/90-300VDC Out: DC 24v/10a

The CP-C.1 24/10.0 is a power supply from the CP-C.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.


Type Components
Manufacturer ABB Control
SKU CP-C.1.24/10.0 1SVR360663R1001
