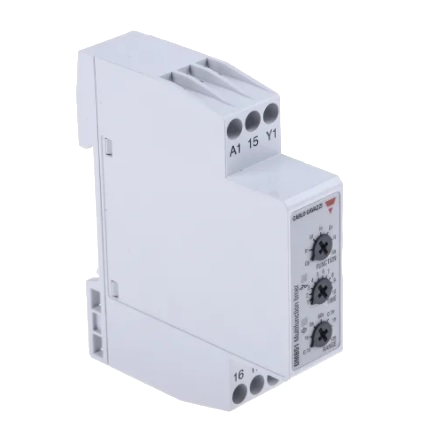

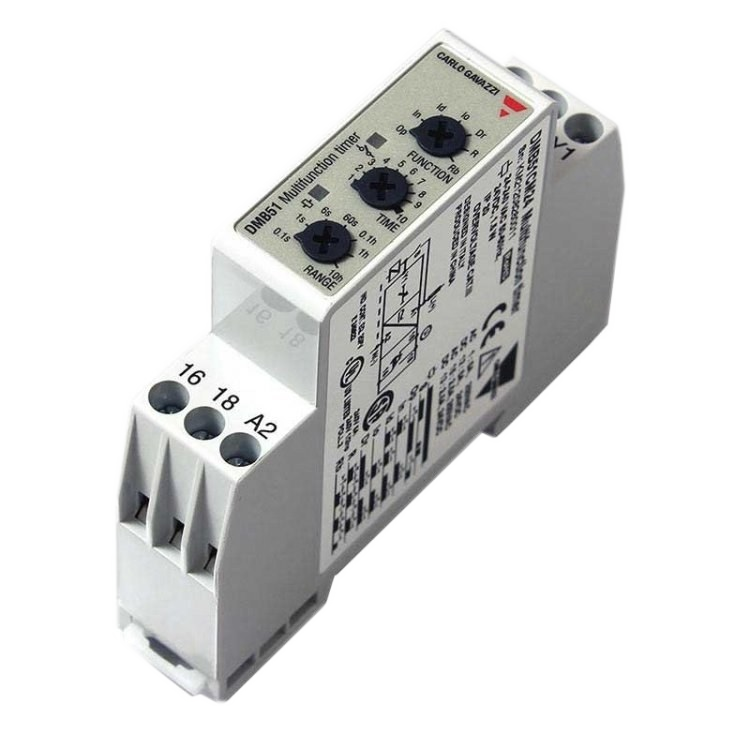

DMB51CM24 Carlo Gavazzi Multifunction timer relay

  • DMB51CM24 Carlo Gavazzi Multifunction timer relay
  • DMB51CM24 Carlo Gavazzi Multifunction timer relay
  • DMB51CM24 Carlo Gavazzi Multifunction timer relay
  • DMB51CM24 Carlo Gavazzi Multifunction timer relay

£35.00


Our best selling multifunction timer relay from Carlo Gavazzi: the DMB51CM24.

At an unbeatable price, this compact, precise multi-function timer relay has the full package and is perfect for applications in food and beverage, process control, chemical, mining and textiles. Setting up is simplicity itself due to the 7 knob-selectable functions and 7 knob-selectable time ranges. It provides a consistent, reliable timing solution which is both easy to use and very quick to configure. When when you need a quality timing solution for electrical applicances, lighting control, heating or motors, pumps and fans, the DBM51CM24 is the winner every time. You could say it's an open and shut case.

As our most in demand Carlo Gavazzi timer, we always keep a stock of these units and offer the most competitive price for them. Order over £100 of timers and your carriage is free. Making it a 'timely' opportunity to buy, so don't 'delay'.

Now for the tech spec on one of the most widely used multifunction delay timers on the market:

  • Multi-voltage with 7 selectable functions time ranges within 0.1s and 100h
  • Ideal for mounting on DIN rail and with a housing width of only 17.5mm
  • Available as SPDT version, and 35.5mm for DPDT version, suitable for both back and front panel mounting
  • LED indication for relay status and power supply "On"
  • Supports PNP / NPN and Namur sensors
  • Choose automatic or manual start.
  • Combined AC and DC power supply. 5 Amp rated.
  • Wide power supply range: 24 VDC and 24 to 240 VAC or 12 to 240 VAC/DC.
  • 0.2% repeatability
  • Voltage type for actuating AC/DC

View the full Carlo Gavazzi spec sheet for the product DMB51CM24 Carlo Gavazzi DMB51CM24 timer



Type Timer
Manufacturer Carlo Gavazzi
SKU DMB51CM24
